產品簡介

　　該機沖裁頻率20-180次分鐘、172萬粒/班（10粒/板：8小時/班：高產、低耗為您節省投資、降低運行（包裝）成本。

　　外形美觀，全部不銹鋼蒙面，全封閉，符合制藥行業GMP生產要求，質量可靠，運行穩定，可按不同生產規模進行選型。

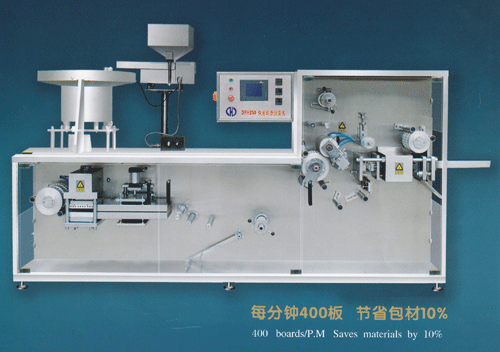

　　Simple Description of Product

　　Cutting Frequency：20-180/p.m.172ten thousands pills/each

　　working shift（10pills/per board:8 hrs/each working

　　shift,high produtivity,low energy consumption,saves fund and decreases the packing cost)

　　Beautiful appearance overll,all are built and covered with stainless steal,fully sealed and conformed to the stanards of GMP pharmaceutical producition.The product is reliable in quality,smooth in operation.The shapes formation can be selected according to different prodution scales.

　　產品特點

　　板式正壓吹塑成型，式熱封，包裝效率高，外形美觀；

　　可與通用上料機、掉頭上料機、圓盤振動上料機配套使用；

　　人機界面，PLC控制，無級變頻調速，高速范圍沖裁20-180次/分鐘，（沖切）；注：根據板型長度，決定沖切次數；

　　具有長充填平臺，可提高成品率，可加裝傳送帶；

　　冷卻方式：循環水或自來水（外接）。

　　沖切無廢料，節省包材10%.

　　Product's Feaures:

　　Plate-model pressure blowing positively for the blister formation and hot seal as well as high efficiency in packing

　　Can be matched to be in set of filling devices such as universal filler,converting head filler,disk vibrating filler;

　　Man-computer interfacing PLC control,F-converting speed,high speed cutting ranged from 20 to 180/pm:

　　Note:Times in cutting depend on the plate's length:

　　Heating:inner hearing,aut-control:

　　Long length filling platform,highlight finishing rate,and also can be installed with conveying belt:

　　Cooling:circulating water,or otherwise using the tap water(outgoing connection):

　　Cutting without waste Left,saves the packing material up to 10%

　　主要技術參數 Main Tech-parameters

　　沖裁效率：20-180次/分 cutting efficency:20-180/pm

　　最大成型面積：200x250mm Max firmation of sizes:200x250mm

　　PVC：250x（0.15-0.45）mm pvc:250x(0.15-0.45)mm

　　PTP：250x（0.02-0.03）mm PTP:250x(0.02-.0.03)mm

　　電源及功率：7.5KW Poewr supply and power:75KW

　　整機尺寸：3000x880x1500mm Overall Sizes:3000x880x1500mm

　　包裝尺寸：3500x1160x1690mm Packing sizes:3500x1160x1690mm

　　整機重量：1500Kg Overall weight:1500kg
